HISUI
Hyper-spectral Imager SUIte

Outline

Hyper-spectral Imager SUIte(HISUI)

1. INTRODUCTION
Hyperspectral Imager Suite (HISUI) is a spaceborne hyperspectral Earth imaging system being developed by Japanese Ministry of Economy, Trade, and Industry (METI). It is METI’s fourth spaceborne optical imaging instrument mission, after Optical Sensor (OPS) onboard Japanese Earth Resource Satellite 1 (JERS-1) operated in 1992 – 1998, Advanced Spaceborne Thermal Emission and Reflection Radiometer (ASTER) onboard NASA’s Terra satellite launched in 1999, and Advanced Satellite with New system Architecture for Observation 1 (ASNARO-1) launched in 2014. In 2015, METI decided the deployment of HISUI on International Space Station (ISS) rather than a dedicated polar orbiting sun synchronous satellite.

The objective of HISUI onboard ISS is to obtain data necessary to start a full-scale practical application development for hyperspectral remote sensing through manufacturing and in-flight performance verification of a hyperspectral imager with high spectral resolution onboard ISS by FY2021. More specifically, through the deployment of the manufactured instrument on ISS, its calibration and mission planning, data acquisition/analysis, we will verify its usefulness in various applications such as oil resource exploration, evaluate the potential of the manufactured instrument, and acquire knowhow to put hyperspectral imagers into practice.

HISUI project is currently being promoted by two organizations each of which has a contract with METI: Japan Space Systems, and National Institute of Advanced Industrial Science and Technology (AIST). In addition, several scientists from domestic universities and national research institutes are participating in the HISUI project. HISUI instrument was successfully launched on December 5, 2019 and installed on Japan Experiment Module Exposed Facility (JEM EF) on ISS. The schedule of HISUI project is shown in Figure 1.

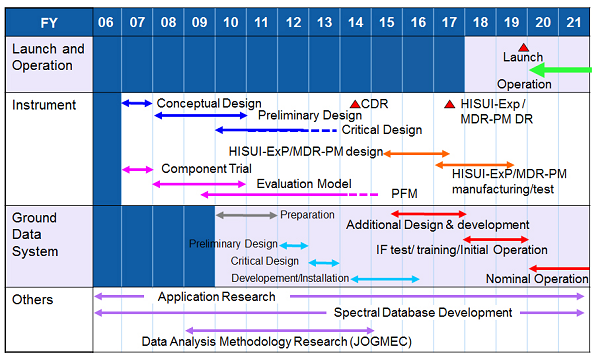

Figure 1. The schedule of HISUI project.

Figure 1. The schedule of HISUI project.


2. HISUI SPECIFICATIONS
The basic specifications of HISUI are summarized in Table 1. The swath of HISUI is narrow due to the optical design constraints and the available two-dimensional detectors. HISUI consists of a reflective telescope and two spectrometers which cover the visible and near infrared region (VNIR) and the shortwave infrared region (SWIR). Each spectrometer consists of a grating and a two-dimensional detector. SWIR spectrometer has a Stirling cooler for the SWIR detector.



table 1. HISUI Specifications

Spatial resolution 20 m (CT) x 30 m(AT)
Swath 20 km
Spectral coverage 0.4 – 2.5 µm
Spectral resolution 10 nm (VNIR)
12.5 nm (SWIR)
Number of band 185
Signal to noise ratio >450 @ 620 nm
>300 @ 2100 nm
MTF > 0.2
Dynamic range 12 bits
Data compression Lossless (70%)
Data rate 0.4 Gbps
(70 % compression)



3. HISUI INSTRUMENT STATUS AND ITS DEPLOYMENT ON ISS
HISUI Exposed Payload System (EPS) (Figure.2) consists of the hyperspectral imager (HISUI Flight Model, Figure3), the structure, the thermal control system, the electrical system and Mission Data Processor (MDP).
HISUI initial checkout activity is still ongoing.

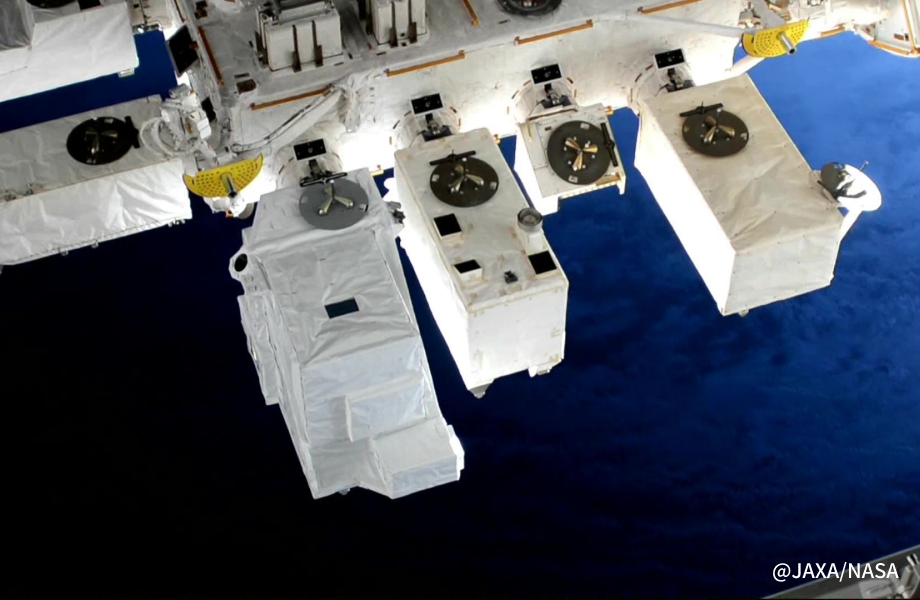

Figure 2. HISUI EPS attached to Port 8 of ISS JEM EF.

Figure 2. HISUI EPS attached to Port 8 of ISS JEM EF.

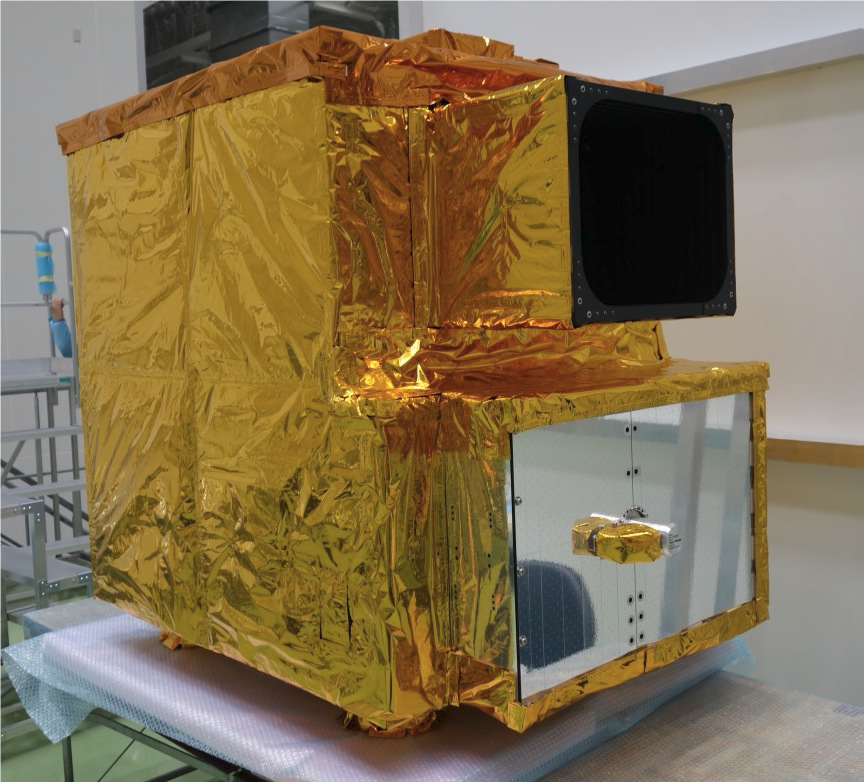

Figure 3. HISUI Flight Model.

Figure 3. HISUI Flight Model.

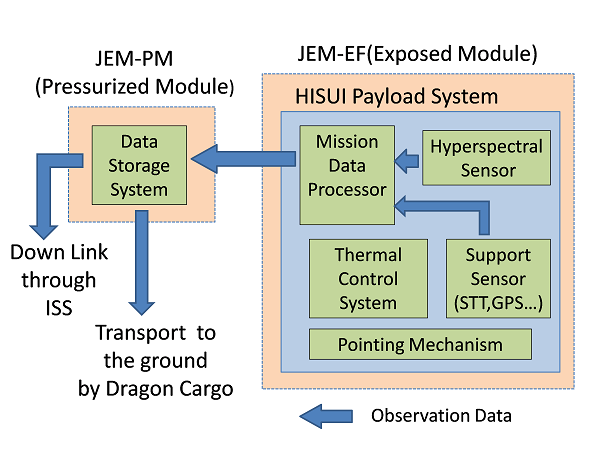

The schematic diagram and the data flow of HISUI on ISS are shown in Figure 4.
Figure 4. Schematic diagram of HISUI on ISS

Figure 4. Schematic diagram of HISUI on ISS


4. HISUI GROUND DATA SYSTEM (GDS) STATUS
4.1. HISUI GDS
The development of original HISUI GDS for a dedicated satellite was finished in FY2017. Additional GDS development related with HISUI’s deployment on ISS was started in FY2015. The development of HISUI GDS for ISS will be completed in the late FY2020. 4.2. Level 1 Processing
HISUI Level 1 data is a standard product and acts as inputs to higher level products (Table 2).
The Level 1 processing flow for HISUI is shown in Figure 5. Level 1 data processing guarantees geometric, radiometric and spectroscopic performances. Radiometric and smile corrections are carried out on orbit. Keystone properties are corrected in the map projection process. Radiometrically corrected Level 1R data are map-projected to orthorectified data, Level 1G. Two slits for VNIR and SWIR spectrometers cause disparity due to the difference in line-of-sight vectors between detectors. To fusion the VNIR and SWIR data, parallax correction is carried out using registration techniques with the aid of the digital elevation models. Since the telescope cannot keep the yaw steering condition on ISS, a software revision to find the corresponding points is underway. Table 2. HISUI product list.

Name Description
Level 0 Raw data
Level 1A Raw DN product with all radiometric calibration coefficients. Spatial resampling is not applied.
Level 1R Top-of-atmosphere spectral radiance product. Spatial resampling is not applied.
Level 1G Geometrically corrected / orthorectified top-of-atmosphere spectral radiance product. Parallax correction, and keystone property are considered. Spectral continuity between VNIR and SWIR are considered.
Level 2G Atmospherically corrected surface spectral reflectance product generated from L1G with QA information. This is Science Product for research purpose and not validated.

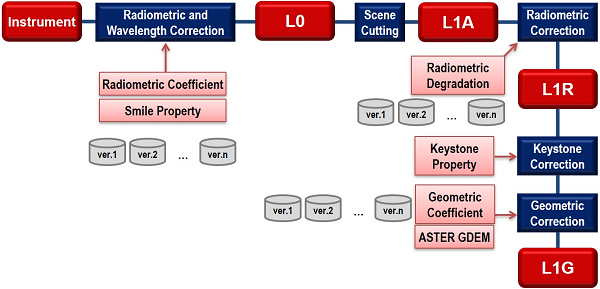

Figure 5. HISUI Level 1 processing flow.

Figure 5. HISUI Level 1 processing flow.



4.3. Level 2 Processing
HISUI Level 2 surface reflectance product contains atmospherically corrected surface reflectance for each of the VNIR and SWIR bands. The Level 2 products will be generated from L1G product as Science products (Table 2). HISUI atmospheric correction algorithm will use “Dark Pixel” method. We evaluate this algorithm using EO-1 Hyperion data and so on. Currently, Thuillier (SUN01thkur) and NewKurucz (SUN01kurucz2005) model in MODTRAN5.2 are adopted as the HISUI irradiance model. Validation plans for HISUI atmospheric correction algorithm are to be discussed.

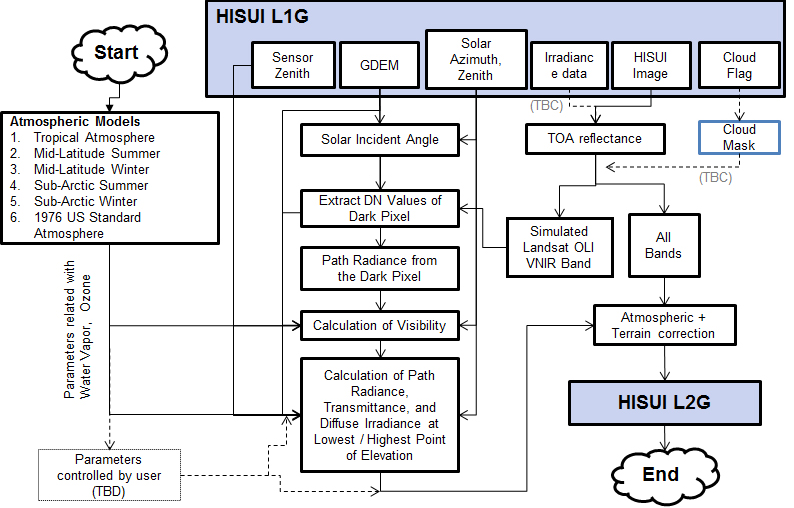

Figure 6. HISUI Level 2G processing flow.

Figure 6. HISUI Level 2G processing flow.


4.4. Radiometric Calibration
The pre-launch calibration of HISUI is conducted using a large integrating sphere traceable to the SI, and after the launch, the onboard calibration will be carried out using the onboard calibration unit including a lamp. The vicarious calibration will be conducted over the dry lake sites located both in northern and southern hemispheres, and we may use automated calibration facilities due to orbital characteristics of the ISS. HISUI will also be cross-calibrated with forthcoming hyperspectral instruments on ISS. The data associated with these calibrations will be archived in the Calibration Data Archive System (CDAS) and the HISUI Calibration Working Group plans to assess HISUI radiometric performance and produces radiometric (geometric) calibration databases over CDAS, which are required in Level 1 processing. 5. HISUI MISSION PLANNING
HISUI will have its own data receiving, storing, and sending devices on EPS and JEM Pressurized Module (PM), Mission Data Processor (MDR) and Mission Data Recorder in Pressurized Module (MDR-PM). HISUI data sent from MDR will be recorded on the removable media in MDR-PM and after recording, the media will be shipped from ISS to the Earth several times in a year. In addition, the limited amount of HISUI data will be transmitted from ISS to the ground station in near-real time. To investigate requirements on these devices, preliminary long-term operation simulations of HISUI for three years were conducted (Figures 7 and 8). Three types of data acquisition requests were considered in the simulation:

  1. Globally distributed 200 targets as large as 100 x 100 km.
  2. Promising areas for oil/gas/metal resources exploration. (About 25% of global land and shallow sea regions.)
  3. Global mapping areas which are not covered by A nor B.

It was assumed that data for A are transmitted and data for B and C are shipped via media. The results suggested that within three years, About70% of A requests will be completed, and more than 90% of B and more than 70 % of C requests will be completed.

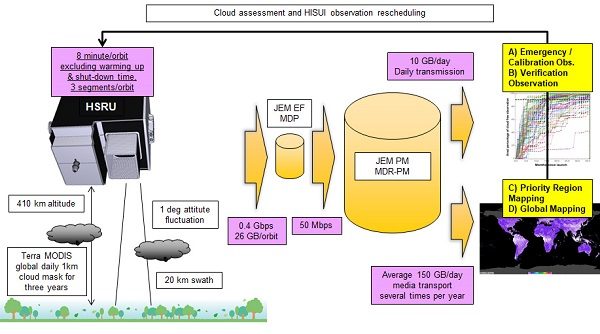

Figure 7. HISUI long-term operation simulation setup.

Figure 7. HISUI long-term operation simulation setup.

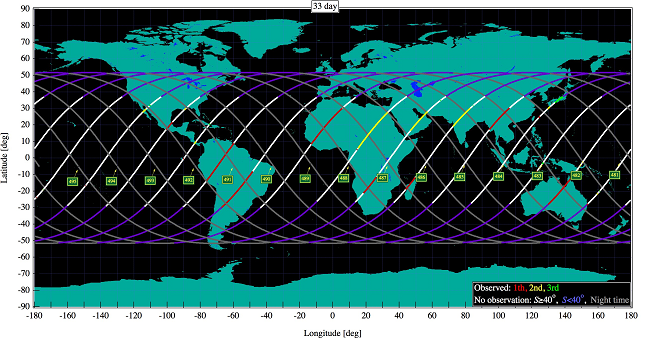

Figure 8. An example of HISUI one-day observation plan.

Figure 8. An example of HISUI one-day observation plan.



6. HISUI DATA POLICY
HISUI data policy is under consideration and the directions of discussion is as follows. For collaborators and research announcement investigators, HISUI project will give priority observation, priority downlink and distribution for their requested areas for free. And for other science users, HISUI project will distribute the archive data.
